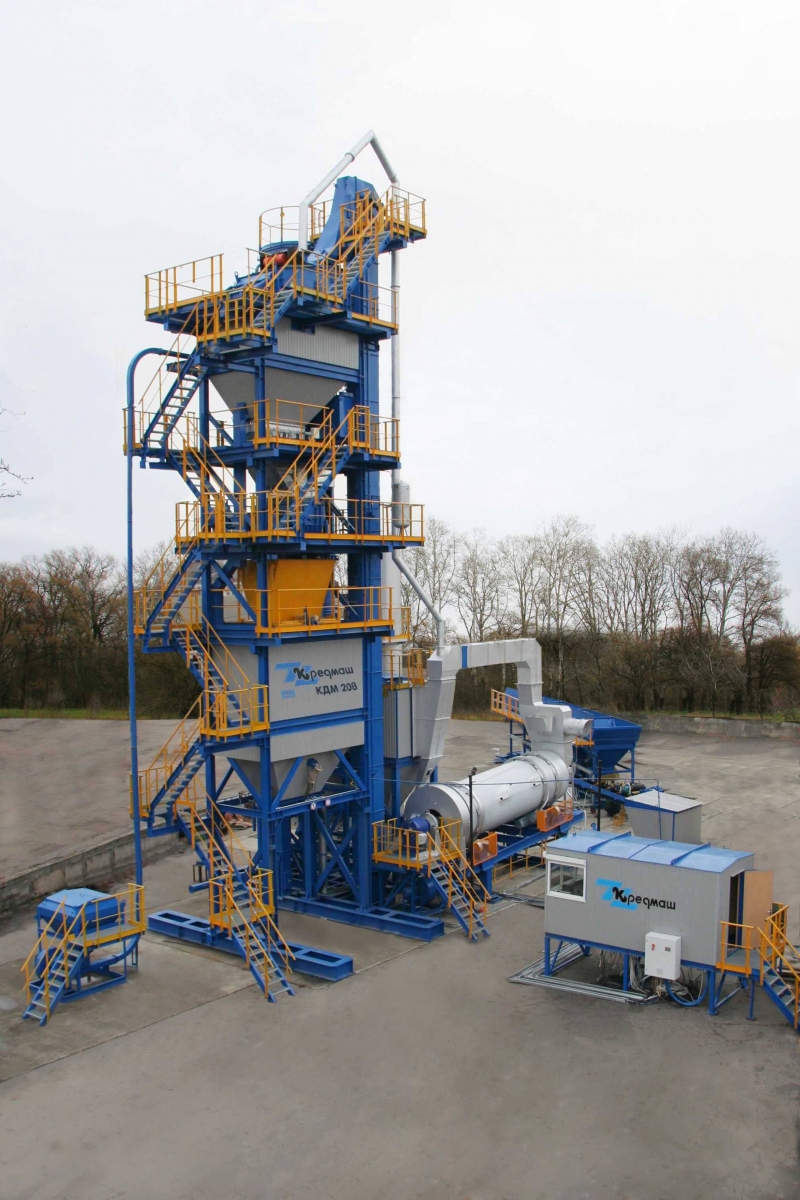

Asphalt mixing plant KDM208: buy, price

Movable / Stationary

Performance: 80 tons / hour

Mixer volume: 1000 kg

Number of containers for bitumen: 2 х 50 m3

Power unit blocks quantity: 4 blocks

Number of fractions: 5

Optimum combination of price and quality for small volumes of asphalt-concrete mixture production.

The price of the asphalt mixing plant KDM 208 is available upon request.

Brochure KDM-208

Send request LEASING CONDITIONS

If you have any questions, please contact our consultants by e-mail or leave your phone number and we will call you back.

Specifications	KDM208
Productivity is nominal at humidity of input materials (sand and crushed stone) up to 3%, t/h	80
Installed capacity, kW, max.	250
Capacity of the power unit bunkers, pcs* m³	4 х 12 = 48
Conveyor belt width, mm	500
Drying drum, Ø*L, mm	1780 х 7000
Burner power, MW	6
Type of fuel	at option: liquid or gaseous
Type of screen	inertial, self-balancing with two electrovibrators
Number of fractions of the dosed stone material, pcs.	5
Capacity of hot stone materials bunker, m³	17
Maximum mass of batch, kg	1000
Tank of ready mix/capacity m³ (t) / number of compartments	Direct unloading compartment - 4,2(7,6) compartments of ready mix - 22,4 (40,3)
Volume of the total ready mix m³ (t) (at bulk density of 1.8 t/m³)	26,6(47,9)
Capacity of mineral powder unit tank, m³	32,5
Dust tank capacity, m³	32,5
Type of dust collecting device	bag filter regenerated due to induced drag
Filtering area of bag filters, m²	382
Total capacity of tanks for bitumen, m³	2х50=100
Area dimension for equipment	37х27

* Specifications are subject to change without notice

Delivery of plants can be carried out by rail, road and sea transport.

The quality of asphalt-mixing plants (products) manufactured by PJSC "Kredmash" is in accordance with GOSTs and technical specifications and is confirmed by the acceptance of the manufacturer's QC department.

Guarantee service life of asphalt-mixing plants is 15 months; it is calculated from the date of commissioning, but no more than 18 months from the date of delivery of the Product by manufacturer provided that the rules specified in the operating manual are observed.

The warranty does not apply to the Products in the event of non-compliance with the rules specified in the operating manual of the Products, as well as in the case of constructive changes made without agreement with the Seller.

The Seller is not responsible for the warranty obligations if the Product is put into operation by specialists not certified by PJSC "Kremenchug plant of road machines".

When installing and launching the Product, the specialists of PJSC "Kremenchug plant of road machines" are issued warranty and Service Book, which is the basis for the fulfillment of warranty obligations.
