Movable / Stationary
Performance: 110 tons / hour
Mixer volume: 1500 kg
Number of containers for bitumen: 2 х 50 m3
Power unit blocks quantity: 5 blocks
Number of fractions: 5

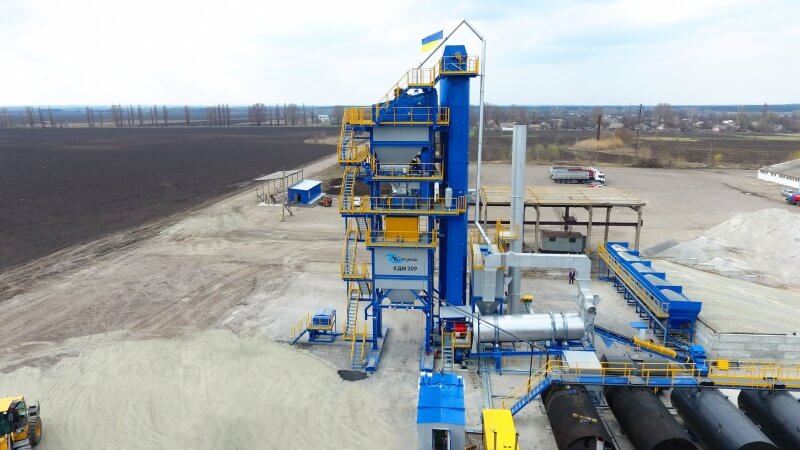

The installation of the new model range KDM209, which meets modern European requirements, is intended for both highway construction and local roads.
The price of the asphalt mixing plant KDM 209 is available upon request.
If you have any questions, please contact our consultants by e-mail or leave your phone number and we will call you back.
|
Specifications |
KDM 209 |
|
Productivity is nominal at humidity of input materials (sand and crushed stone) up to 3%, t/h |
110 |
|
Installed capacity, kW, max. |
280 |
|
Capacity of the power unit bunkers, pcs* m3 |
5 х 12=60 |
|
Conveyor belt width, mm |
500 |
|
Drying drum, Ø*L, mm |
1780х 7900 |
|
Burner power, MW |
9 |
|
Type of fuel |
at option: liquid or gaseous |
|
Type of screen |
inertial, self-balancing with two electrovibrators |
|
Number of fractions of the dosed stone material, pcs. |
5 |
|
Capacity of hot stone materials bunker, m3 |
17 |
|
Maximum mass of batch, kg |
1500 |
|
Tank of ready mix/capacity m3 (t) / number of compartments |
Direct unloading compartment - 4,2 ( 7,6 ) compartments of ready mix -22,4 (40,3) |
| Volume of the total ready mix m3 (t) (at bulk density of 1.8 t/m3) | 26,6 (47,9) |
|
Capacity of mineral powder unit tank, m3 |
32,5 |
|
Dust tank capacity, m3 |
32,5 |
|
Type of dust collecting device |
bag filter regenerated due to induced drag |
|
Filtering area of bag filters, m2 |
509 |
|
Total capacity of tanks for bitumen, m3 |
2х50=100 |
|
Area dimension for equipment |
41х32 |
Delivery of plants can be carried out by rail, road and sea transport.
The quality of asphalt-mixing plants (products) manufactured by PJSC "Kredmash" is in accordance with GOSTs and technical specifications and is confirmed by the acceptance of the manufacturer's QC department.
Guarantee service life of asphalt-mixing plants is 15 months; it is calculated from the date of commissioning, but no more than 18 months from the date of delivery of the Product by manufacturer provided that the rules specified in the operating manual are observed.
The warranty does not apply to the Products in the event of non-compliance with the rules specified in the operating manual of the Products, as well as in the case of constructive changes made without agreement with the Seller.
The Seller is not responsible for the warranty obligations if the Product is put into operation by specialists not certified by PJSC "Kremenchug plant of road machines".
When installing and launching the Product, the specialists of PJSC "Kremenchug plant of road machines" are issued warranty and Service Book, which is the basis for the fulfillment of warranty obligations.
Supply of plants, consumables and spare parts at minimum term
Favorable price in comparison with foreign analogues
Quality of products complies with European standards
Our plants work all over the world. View the sales geography
Additional Information
Design features of this product: thanks to new screen it is provided stone materials screening into 5 fractions, it was introduced thermal insulation of "hot" bunker, the level of stone materials in the compartments is controlled by continuous level sensors, the accuracy of dosing of stone materials and bitumen is improved, fundamentally new design of bag filters was introduced, the width of the loading of stone materials in power supply increased to 3.5 m, it is applied "soft" heating of bitumen due to thermal oil and much more.
All main components and critical components from European manufacturers: burners, screw air compressor, pneumatics, motor reducers, filter cloth, electrical products, etc.
The units and aggregates of the asphalt mixing plant are made in auto-dimension, which ensures a reduction ofCustomer’s transportation costs when equipment is relocating.
When KDM-2097 plant was commissionedwere present the leaders of Poltava and region, heads and experts of road organizations.
