Performance: 200-240 tons/hour

Mixer volume: 2600 kg

Number of containers: 1 х 14 m3

Power unit blocks quantity: 3

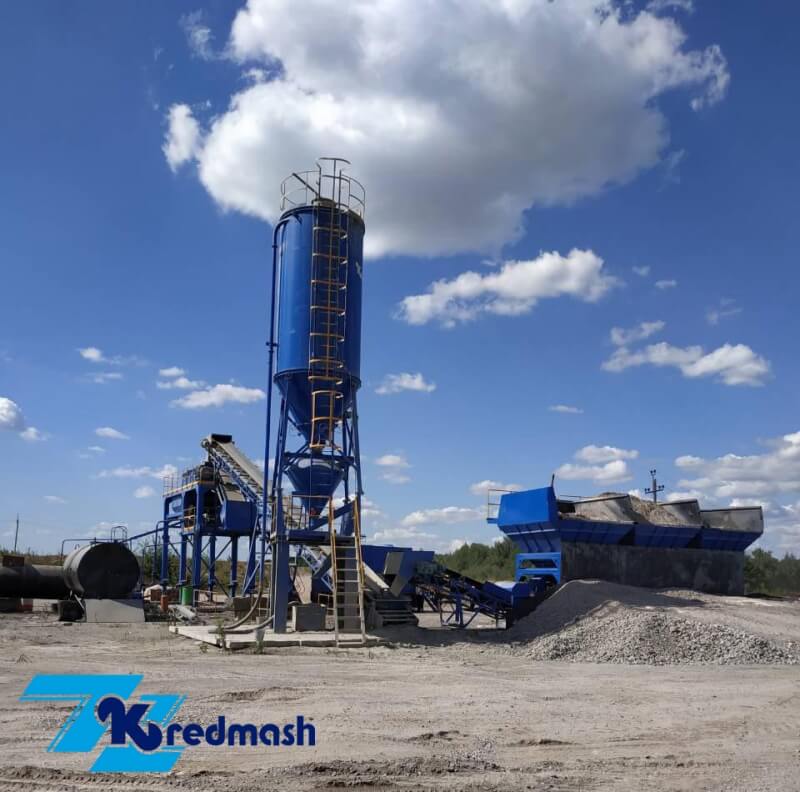

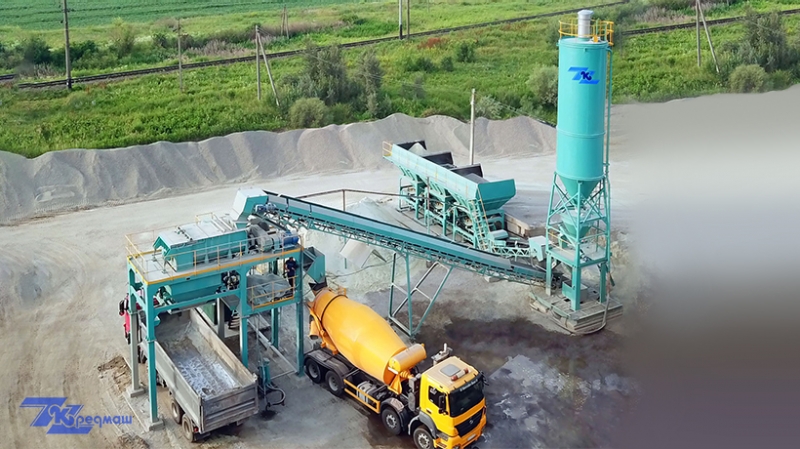

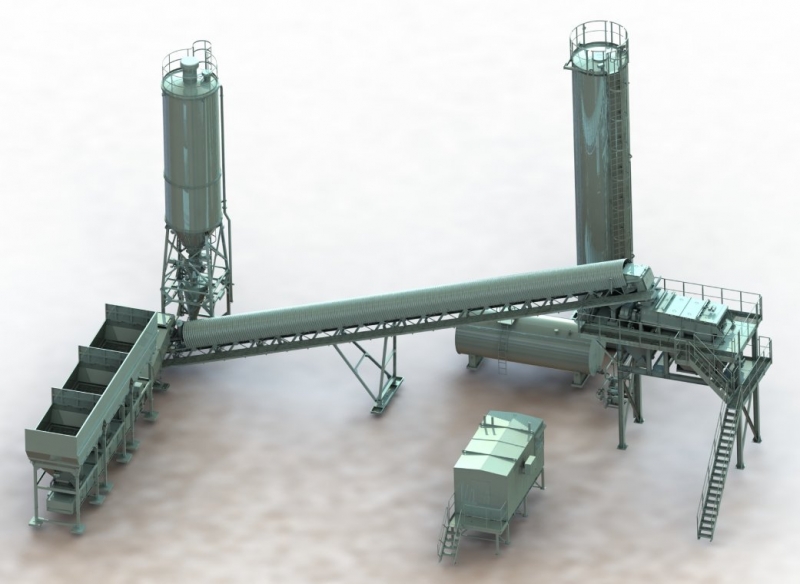

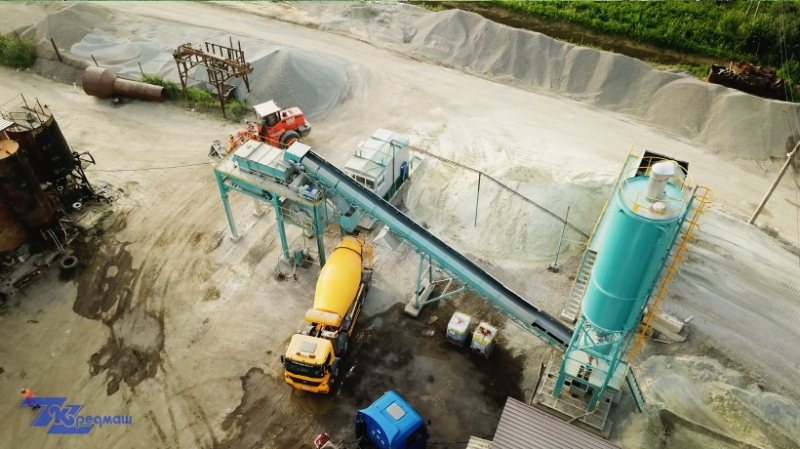

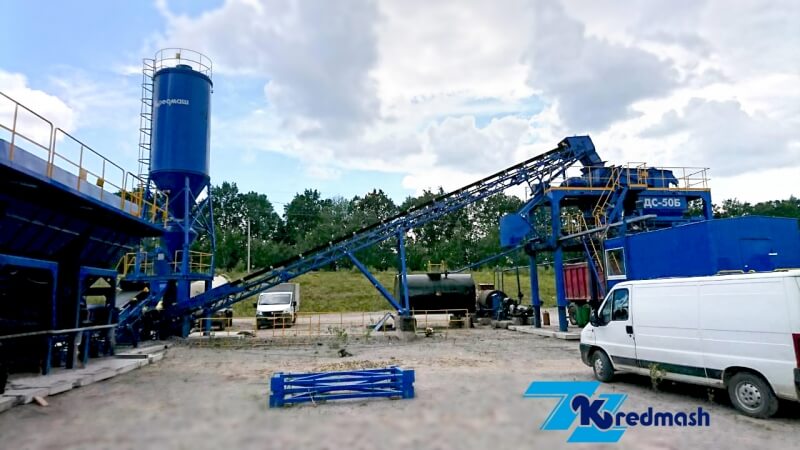

Ground-batching plant DS 50B with productivity 200-240 t/h is designed for preparation of cement-ground and bitumen-ground mixes from frictional soil at pits along roads (up to clay sand with plasticity number 3-7). The plant is used in road construction.

The price of the ground-mixing plants DC50B/DC50BM is available upon request.



If you have any questions, please contact our consultants by e-mail or leave your phone number and we will call you back.

Technical characteristics   DS50B

DS50B

with microprocessor control system (MSU)

Average technical productivity, t/h 200-240
Capacity o of power supply units bin, m3 3х16 = 48
Capacity of powder materials bin, m3 23
Capacity of ready mix bunker, m3  5
Tank capacity for liquid waste materials or water, m3  14
Availability of foundations (option)  +
Control system Relay contact  Microprocessor control system


The quality of asphalt-mixing plants (products) manufactured by PJSC "Kredmash" is in accordance with GOSTs and technical specifications and is confirmed by the acceptance of the manufacturer's QC department.

Guarantee service life of ground-mixing plants DC50B/DC50BM is 12 months; it is calculated from the date of commissioning, but no more than 15 months from the date of delivery of the Product by manufacturer provided that the rules specified in the operating manual are observed.

The warranty does not apply to the Products in the event of non-compliance with the rules specified in the operating manual of the Products, as well as in the case of constructive changes made without agreement with the Seller.

The Seller is not responsible for the warranty obligations if the Product is put into operation by specialists not certified by PJSC "Kremenchug plant of road machines".

When installing and launching the Product, the specialists of PJSC "Kremenchug plant of road machines" are issued warranty and Service Book, which is the basis for the fulfillment of warranty obligations.

Advantages of our plants

Supply of plants, consumables and spare parts at minimum term

Favorable price in comparison with foreign analogues

Quality of products complies with European standards

Our plants work all over the world. View the sales geography

Additional Information

PrJSC "Kredmash" can supply the unit in complete set as required by the customer, as well as supply of additional units: bins for powder materials, tanks for liquid binders and other components.

Preparation of cold recycling on DS50B.

The upgraded ground-batching plant DS 50B (with microprocessor control system MCS and additional capacity for bitumen emulsion of 30 m3 with electric heating), which provides weight dosing of bitumen emulsion, water, powder materials (cement), volumetric dosing of inert stone materials can be used as installations for cold recycling.
