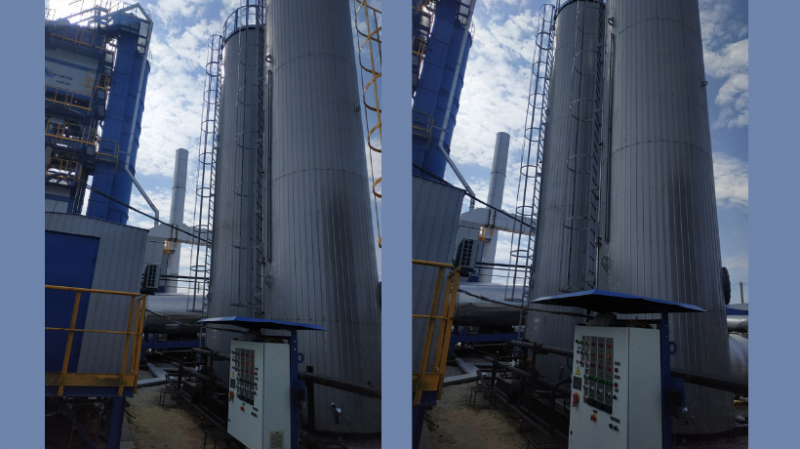

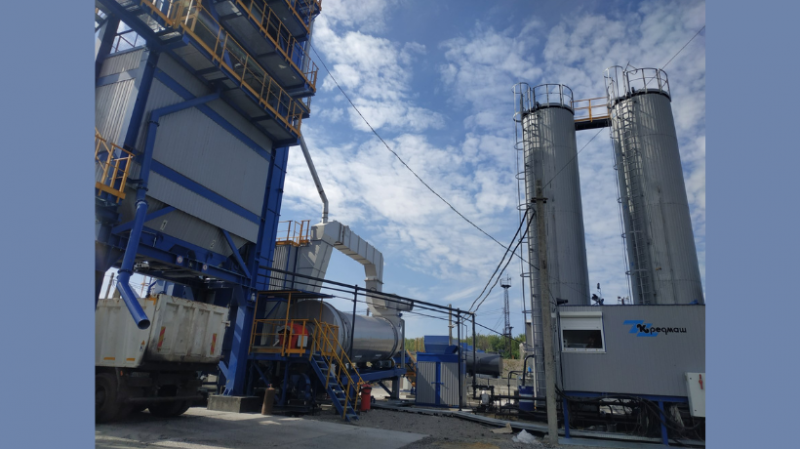

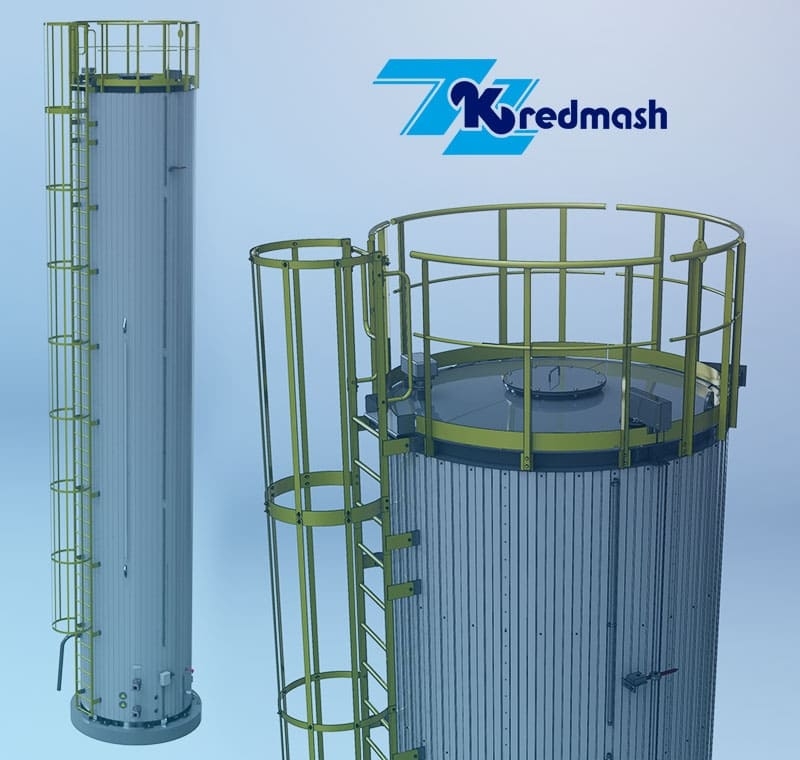

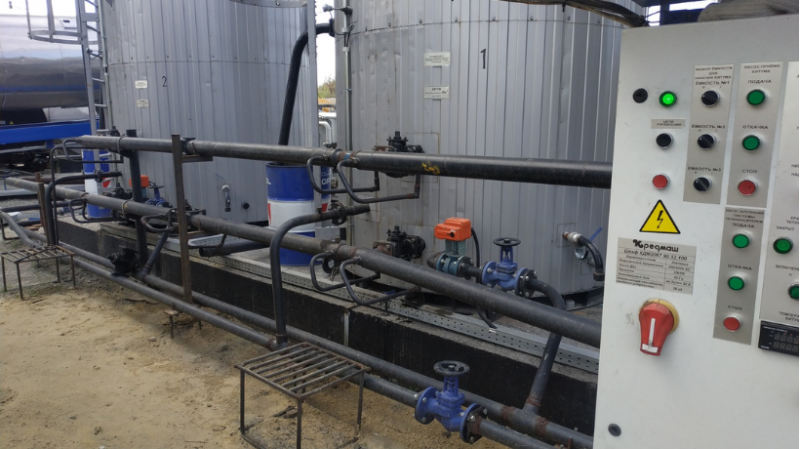

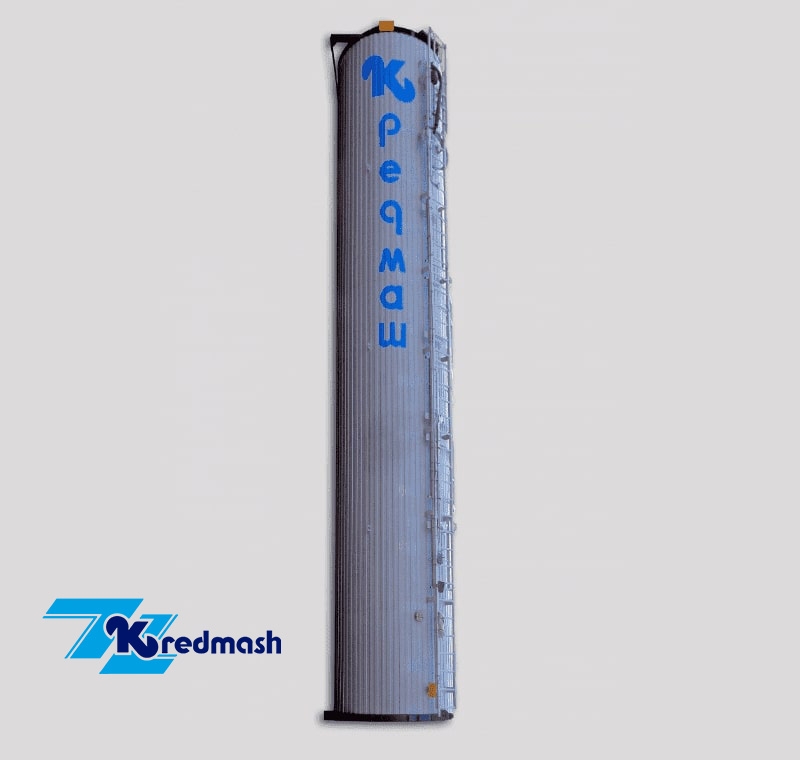

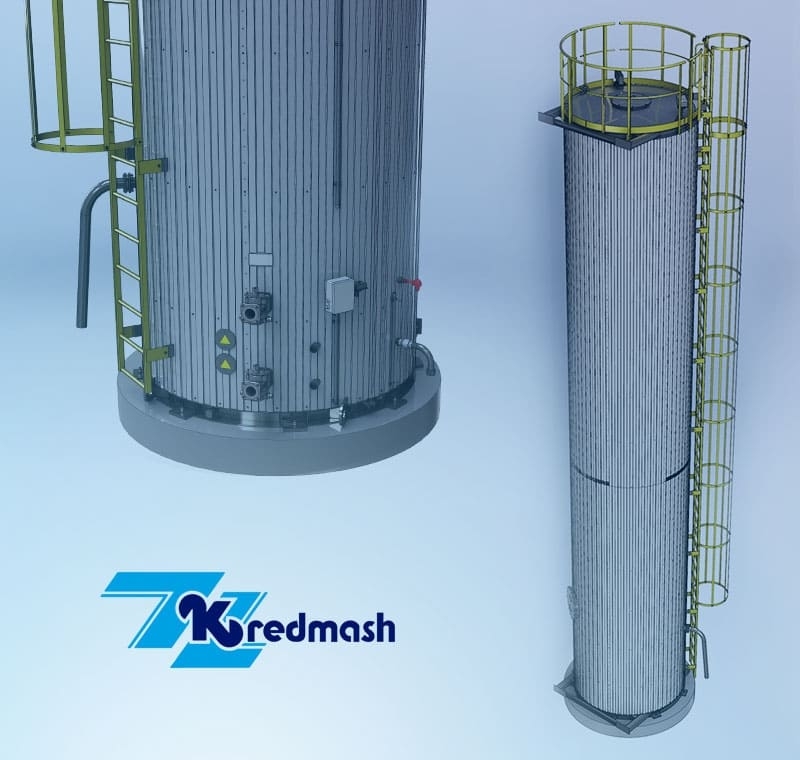

Vertical tank for bitumen with a volume of 48 m3 with a coil and a casing made of corrugated deck in automotive size.

If you have any questions, please contact our consultants by e-mail or leave your phone number and we will call you back.

 Specifications
 dimensions / mm 13350 х2400 х 2600
 mass  9580 kg
 the volume of the tank  48 m³
 thermal insulation thickness  80 mm
 coil area  56 m²


The delivery set includes: temperature sensor, upper and lower level sensors, breathing valve, stairs, handrails, 2 bitumen cranes.

Optionally, it is possible to install a hydrostatic bitumen level sensor in the tank.
